High Pressure Air Driven Liquid Pumps
GXH Series
GXH Series Air / Gas Driven Liquid Pumps:
High Pressure Air Driven Liquid Pumps PX Series

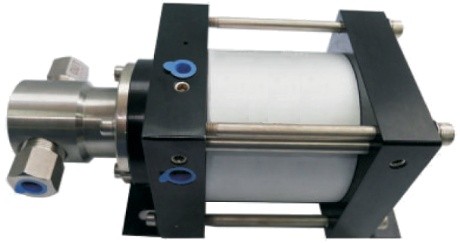

This series of liquid pumps are single acting, single 100mm air drive units that are capable of pressures in excess of 15,000 PSI / 1,040 BAR. The Gretec Pump model number reflects the pumps nominal pressure ratio , while the technical data indicates exact ratios. The outlet stall pressure is easy to set by adjusting the air drive pressure and by simply multiplying the pressure ratio by the air drive pressure, the nominal liquid pressure can be calculated.
Features
- Stainless steel wet end materials of construction
- Specialised construction materials available
- Polyurethane pressure seals as standard
- UHMWPE, PTFE & other special seals available
- Separation & drainage between hydraulic & pneumatic seals
- No airline lubrication required
- Compact and lightweight
- Suitable for most hazardous areas
- Available as a complete packaged system (PP2)
Contact GRETEC for our Liquid Pump Competitive Product Comparison to:
HASKEL, HYDRAULICS INTERNATIONAL and MAXIMATOR
| Image | Product | Code | Price | |
|---|---|---|---|---|
|
XH02 300psi/20 barg | XH02 | CAD1,407.00 each | Product details |
|
XH04 480 psi/33 barg | XH04 | CAD1,428.00 each | Product details |
|
XH06 719 psi/49 barg | XH06 | CAD1,428.00 each | Product details |
|
XH10 1,203 psi/83 barg | XH10 | CAD870.32 each | Product details |
|
|
XH16 1,925 psi/132 barg | XH16 | CAD870.32 each | Product details |
|
XH25 3008 psi/207 barg | XH25 | CAD1,314.00 each | Product details |
|
XH39 4684 psi/323 barg | XH39 | CAD1,326.00 each | Product details |
|
XH64 7702 psi/531 barg | XH64 | CAD1,326.00 each | Product details |
|
XH100 12,035 psi/830 barg | XH100 | CAD1,347.00 each | Product details |
|
XH130 15,645psi/1079 barg | XH130 | CAD1,347.00 each | Product details |
|
XH156 18,763 psi/1294 barg | XH156 | CAD1,428.00 each | Product details |
